Honda CR125R / CR250R / CR500R Rear Cush Drive Hub Wheel Bearing Kit (116R)
Pickup available at Warp 9
Product Description

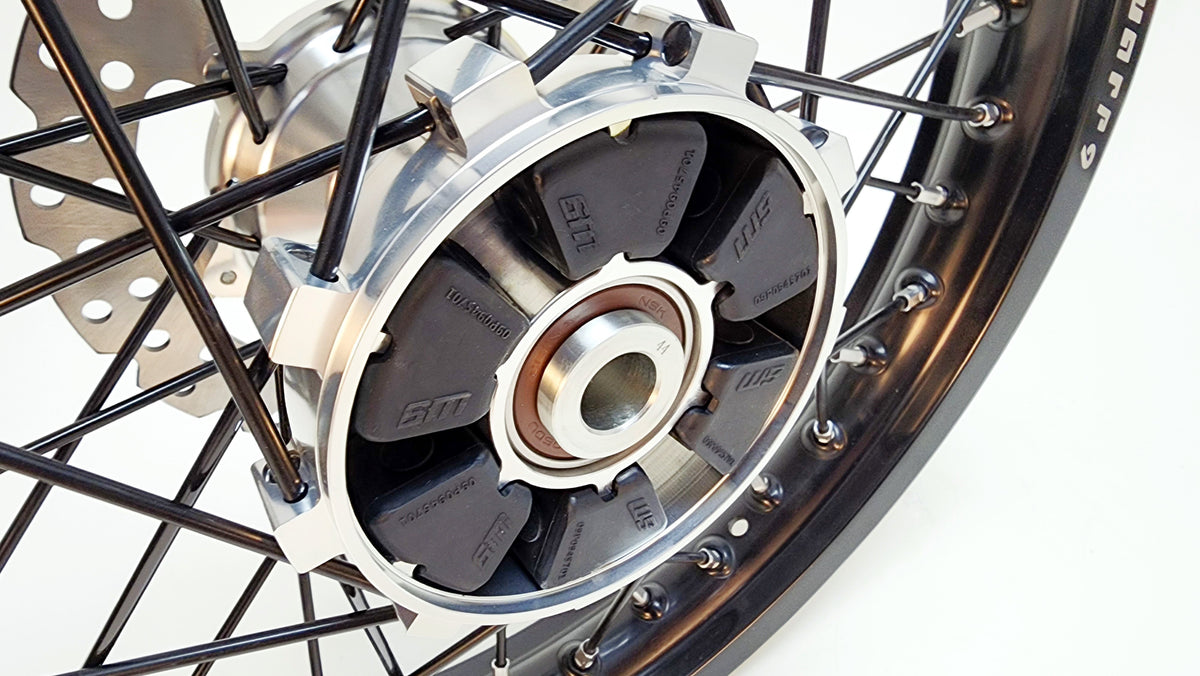

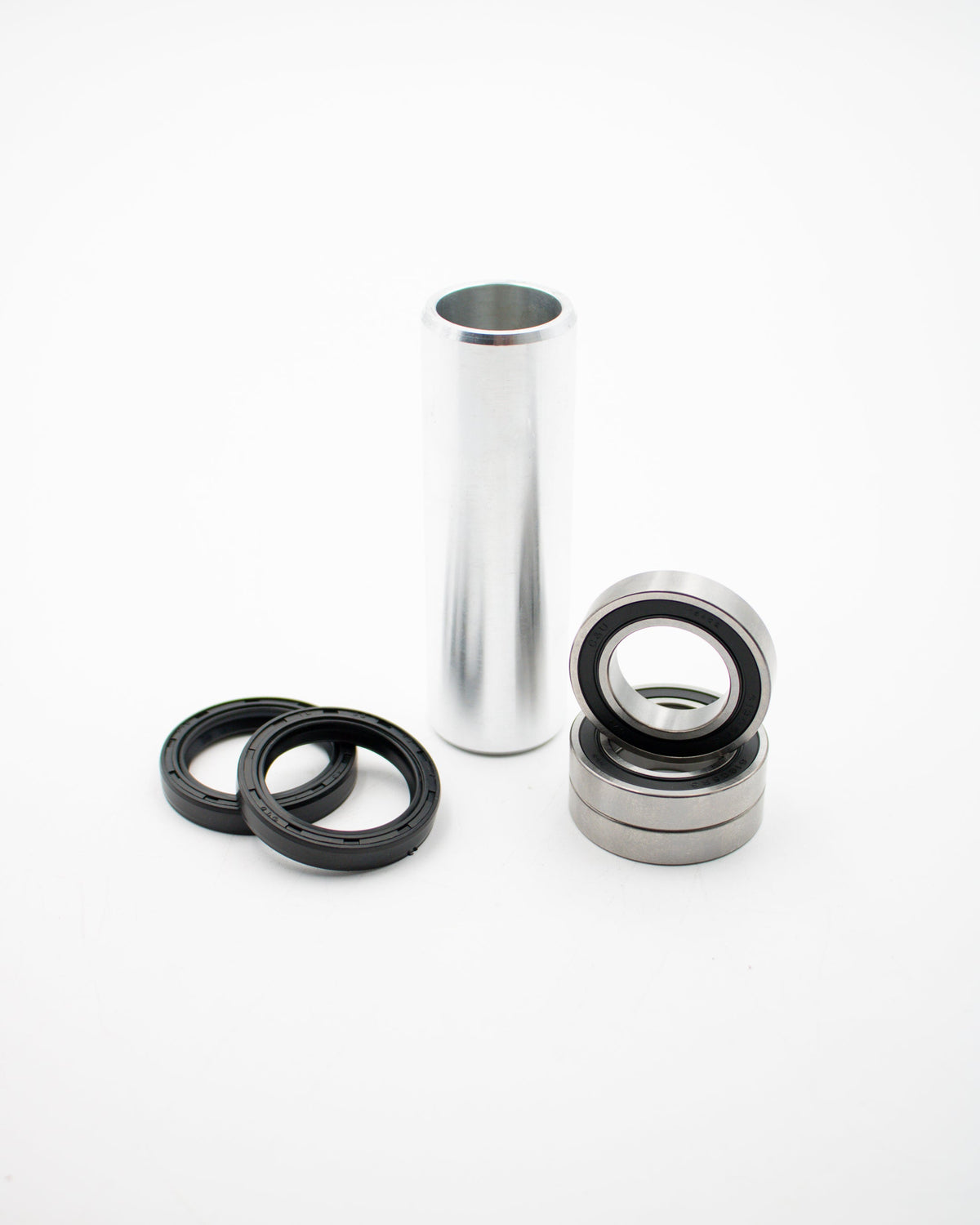

A rear wheel bearing kit for the Warp 9 116R cush drive hub on the 1987–1997 Honda CR125R and CR250R and the CR500R, with what you need to rebuild one rear wheel: the hub bearings, seal, distance tube and wheel spacers, plus the bearing and inside spacer for the cush drive sprocket carrier.
- Hub bearings: 1 x 6905 (42 x 25mm), 2 x 6906 (47 x 30mm)
- Hub seal: 1 x 33-43-7
- Distance tube: included
- Carrier bearing: 1 x 6005 (47 x 25mm)
- Spacers: #12 rotor side, #61 sprocket side, #60 inside carrier
- Kit numbers: 116R (hub) and 116R-C (carrier)
Warp 9 wheels only: this kit fits Warp 9 116R cush drive hubs, not OEM hubs. For 1998–2007 CR125R and CR250R, see the Honda CR / CRF 116R kit.
Fits:
- Honda CR125R: 1987–1997
- Honda CR250R: 1987–1997
- Honda CR500R: 1987–2001
Rebuilding the cush drive? Replace the rubbers at the same time with our Cush Drive Rubbers.
Not sure it fits? Call (801) 699-7979, Monday to Friday 8:30 to 4:30 Mountain.
