Beta 22mm Rear Cush Drive Hub Wheel Bearing Kit (115R)
Pickup available at Warp 9
Product Description

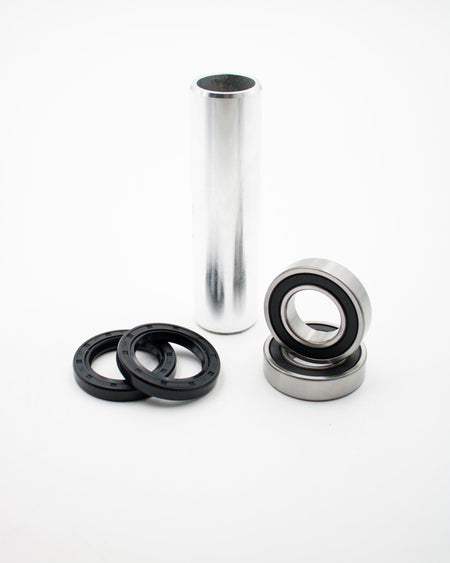

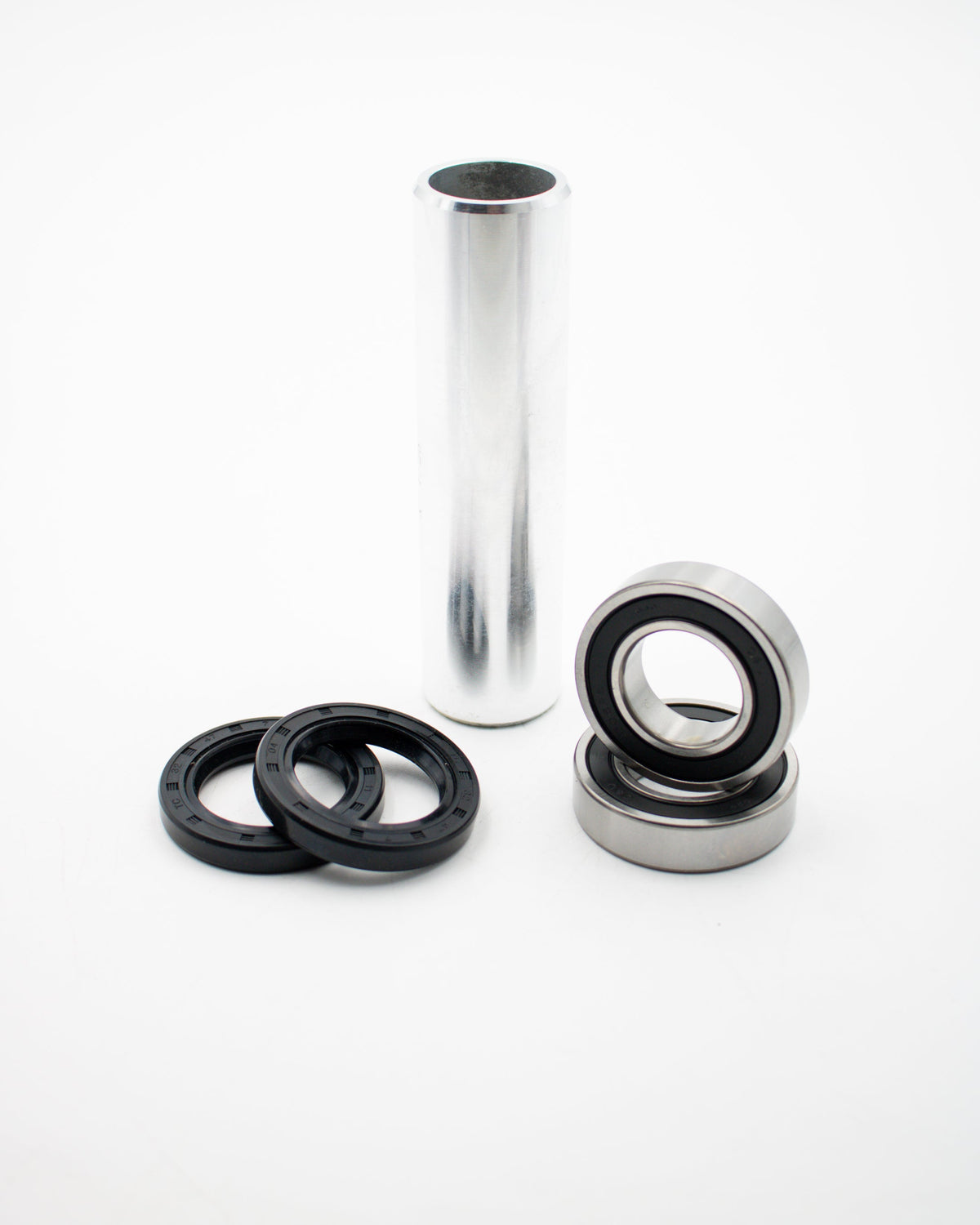

A rear wheel bearing kit for the Warp 9 115R cush drive hub on 2025–current Beta models with the 22mm axle, with what you need to rebuild one rear wheel: the hub bearings, seal, C-clip, distance tube and wheel spacers, plus the bearings and inside spacer for the cush drive sprocket carrier.
- Axle: 22mm
- Hub bearings: 2 x 6205DU (52 x 25mm)
- Hub seal: 1 x 32-52-7, plus C-clip
- Distance tube: included
- Carrier bearings: 2 x 6005 (47 x 25mm)
- Spacers: #110 rotor side, #99 sprocket side, #100 inside hub
- Kit numbers: 115R (hub) and 115R-C22 (carrier)
Warp 9 wheels only: this kit fits Warp 9 115R cush drive hubs with a 22mm axle, not OEM hubs. 2024-and-older Betas use the 20mm kit.
Fits:
- Beta RR 2T 125 / 200 / 250 / 300: 2025–current
- Beta RR 4T 350 / 390 / 430 / 480: 2025–current
- Beta RR-S 4T 350 / 390 / 430 / 500: 2025–current
- Beta RX 2T 300: 2025–current
- Beta Xtrainer 300: 2025–current
Rebuilding the cush drive? Replace the rubbers at the same time with our Cush Drive Rubbers.
Not sure it fits? Call (801) 699-7979, Monday to Friday 8:30 to 4:30 Mountain.
Goes with this

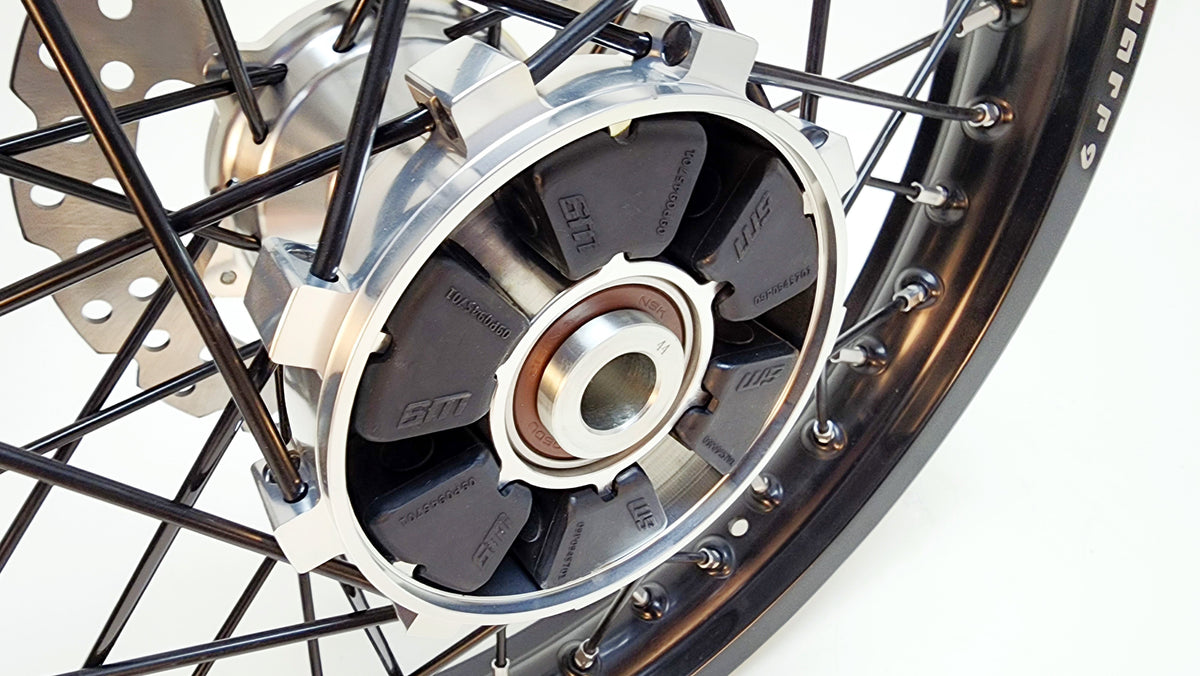

Hubs these bearings service
