Honda CR / CRF Rear Cush Drive Hub Wheel Bearing Kit (116R)

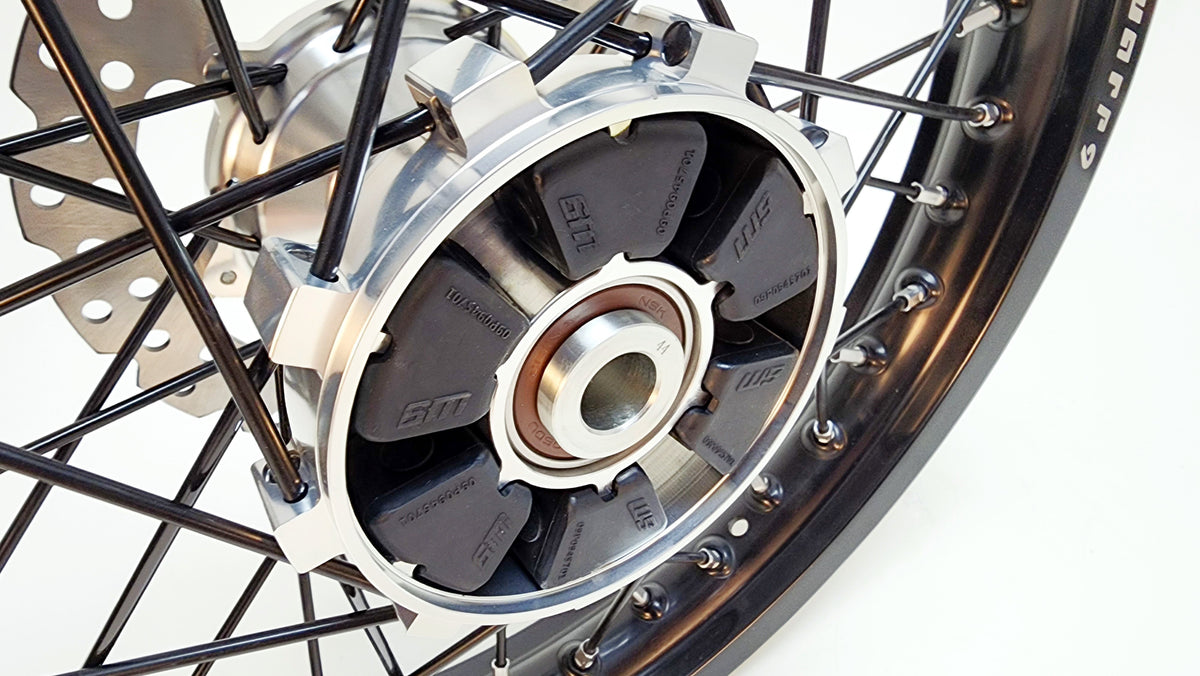

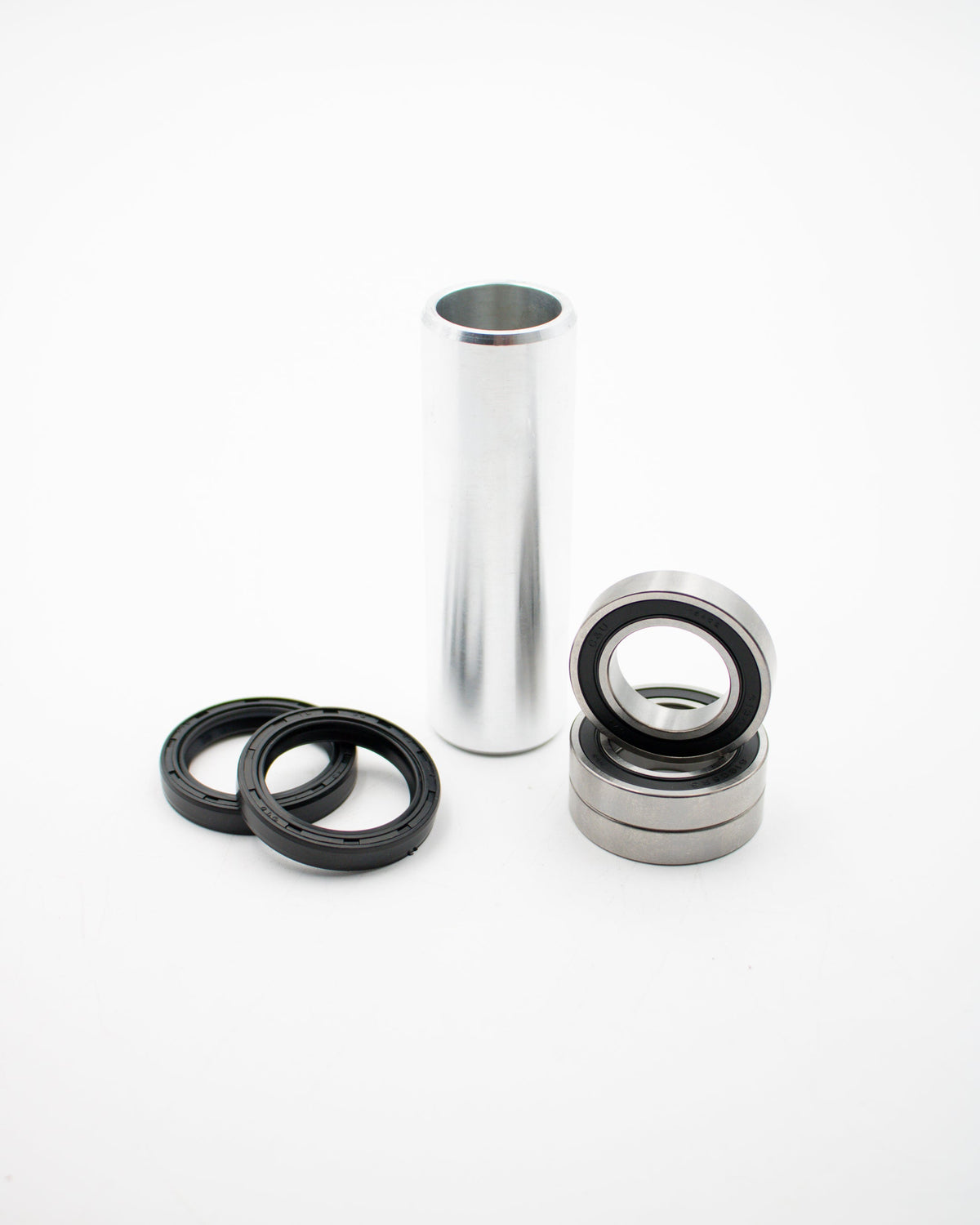

A rear wheel bearing kit for the Warp 9 116R cush drive hub on Honda CR, 2012-and-older CRF-R and CRF-X models, with what you need to rebuild one rear wheel: the hub bearings, seal, distance tube and wheel spacers, plus the bearing and inside spacer for the cush drive sprocket carrier.

• Hub bearings: 1 x 6905 (42 x 25mm), 2 x 6906 (47 x 30mm)
• Hub seal: 1 x 33-43-7
• Distance tube: included
• Carrier bearing: 1 x 6005 (47 x 25mm)
• Spacers: #73 rotor side, #74 sprocket side, #75 inside carrier
• Kit numbers: 116R (hub) and 116R-C (carrier)

Warp 9 wheels only: this kit fits Warp 9 116R cush drive hubs, not OEM hubs. XR models and 1987–1997 CR125R/CR250R and CR500R use different spacers and have their own kits. For 2013–current CRF250R and CRF450R, see the 117R kit.

Fits:

• Honda CR125R: 1998–2007
• Honda CR250R: 1998–2007
• Honda CRF250R: 2004–2012
• Honda CRF250X: 2004–2017
• Honda CRF450R: 2002–2012
• Honda CRF450X: 2005–2018

Rebuilding the cush drive? Replace the rubbers at the same time with our Cush Drive Rubbers.

Not sure it fits? Call (801) 699-7979, Monday to Friday 8:30 to 4:30 Mountain.
