Kawasaki KLR650 GEN 1/2 Rear Cush Drive Hub Wheel Bearing Kit (111R)
Pickup available at Warp 9
Product Description

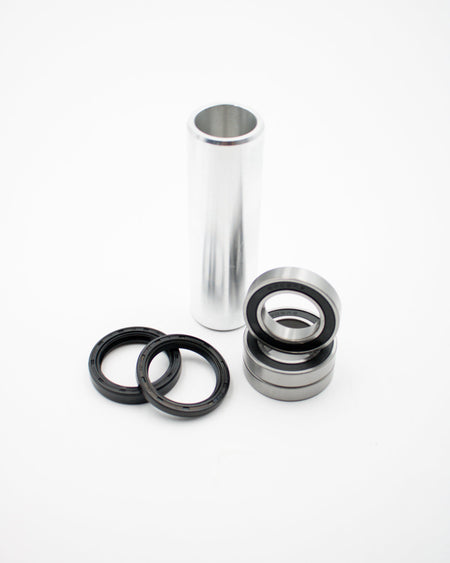

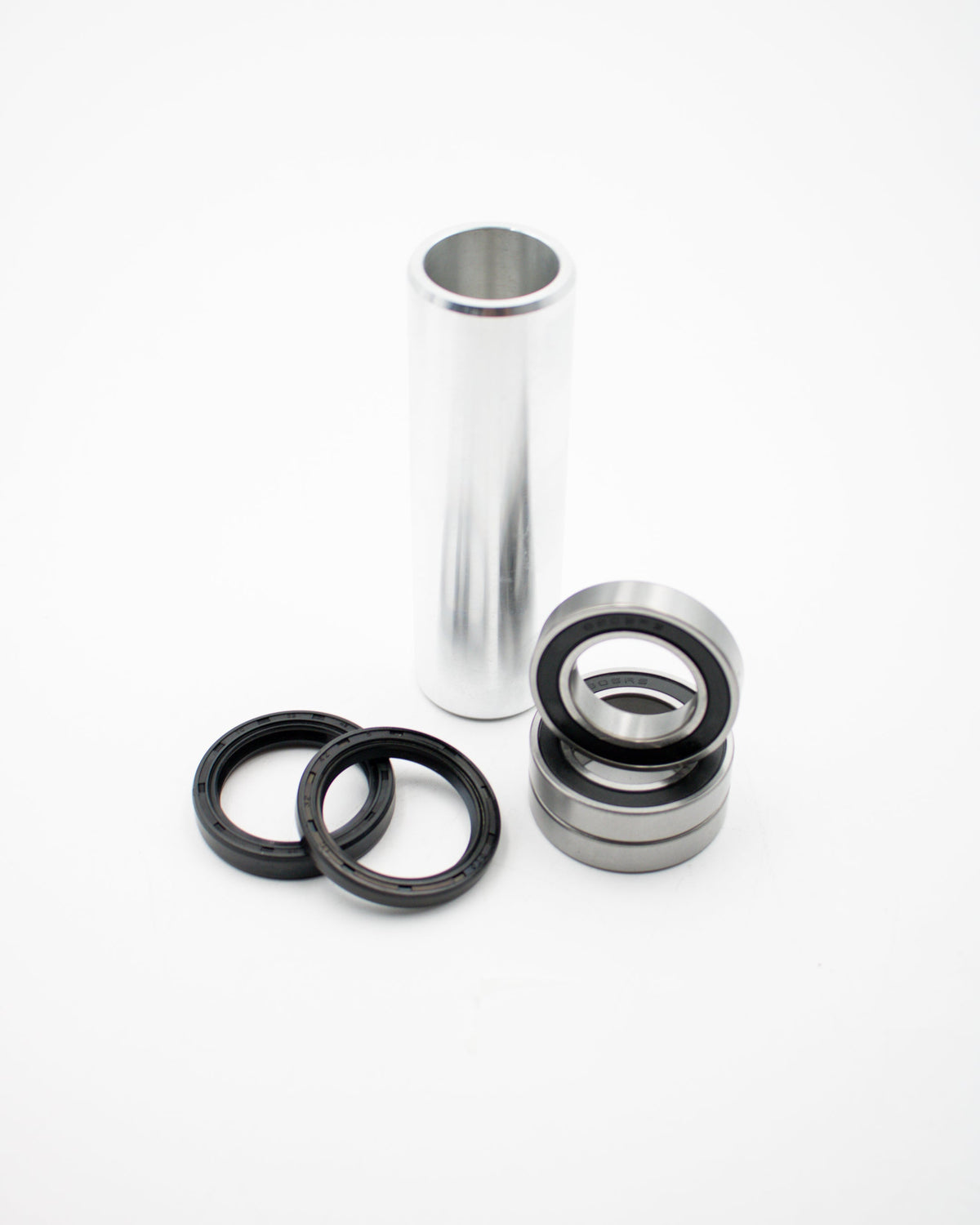

A rear wheel bearing kit for the Warp 9 111R cush drive hub on the Kawasaki KLR650 Gen 1 and Gen 2, with what you need to rebuild one rear wheel: the hub bearings, C-clip and distance tube, plus the bearing, C-clip and inside spacer for the cush drive sprocket carrier.
- Hub bearings: 1 x 6204DU (47 x 20mm) rotor side, 1 x 6003LU (35 x 17mm) sprocket side
- Hub seals: none (C-clip on the rotor side)
- Distance tube: included
- Carrier bearing: 1 x 6004DU (42 x 20mm) with C-clip
- Spacers: #34 inside carrier (uses the OEM rotor side and sprocket side spacers)
- Kit numbers: 111R (hub) and 111R-C (carrier)
Warp 9 wheels only: this kit fits Warp 9 111R cush drive hubs, not OEM hubs.
Fits:
- Kawasaki KLR650 Gen 1: 1987–2007
- Kawasaki KLR650 Gen 2: 2008–2018
Rebuilding the cush drive? Replace the rubbers at the same time with our Cush Drive Rubbers.
Not sure it fits? Call (801) 699-7979, Monday to Friday 8:30 to 4:30 Mountain.
