KTM 20mm Rear Cush Drive Hub Wheel Bearing Kit (115R)
Pickup available at Warp 9
Product Description

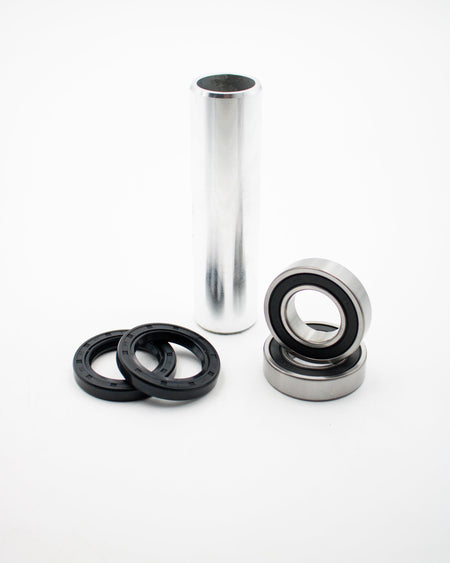

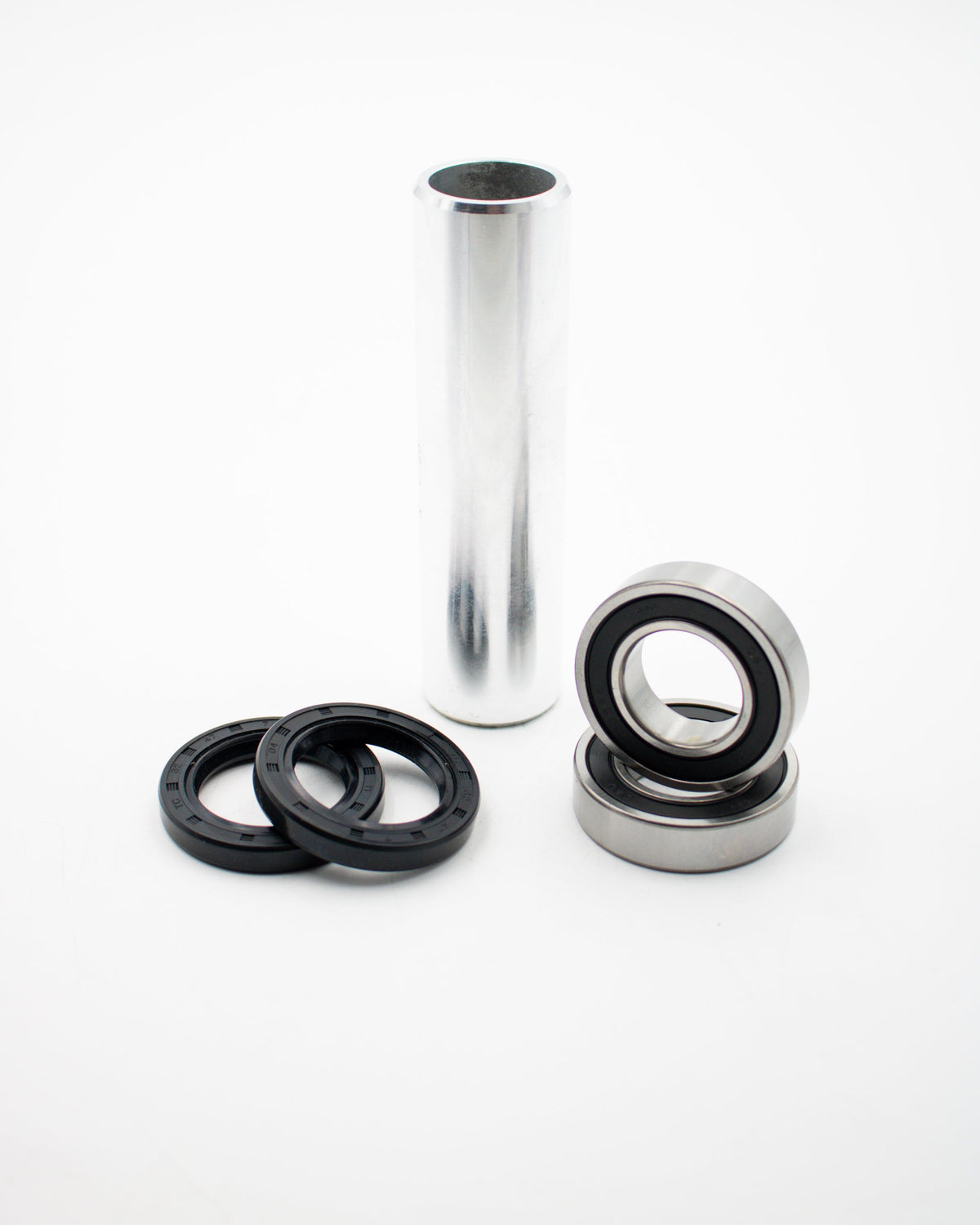

A rear wheel bearing kit for the Warp 9 115R cush drive hub on 20mm-axle KTM models, with what you need to rebuild one rear wheel: the hub bearings, seal, C-clip, distance tube and wheel spacers, plus the bearings and inside spacer for the cush drive sprocket carrier.
- Axle: 20mm
- Hub bearings: 2 x 6205DU (52 x 25mm)
- Hub seal: 1 x 32-52-7, plus C-clip
- Distance tube: included
- Carrier bearings: 2 x 6005 (47 x 25mm)
- Spacers: #42 rotor side, #43 sprocket side, #44 inside
- Kit numbers: 115R (hub) and 115R-C20 (carrier)
Warp 9 wheels only: this kit fits Warp 9 115R cush drive hubs with a 20mm axle, not OEM hubs. 22mm and 25mm axle bikes have their own kits.
Fits:
- KTM EXC 125 / 200: 1990–2016
- KTM EXC 150: 2020–2023
- KTM EXC 250 / 300 (incl. Six Days): 1990–2023
- KTM EXC 400: 1990–2007
- KTM EXC 520: 2000–2002
- KTM EXC-F 350 (incl. Six Days, Erzbergrodeo): 2012–2023
- KTM EXC-F 450 (incl. Six Days): 2003–2023
- KTM SX 125 / 250: 1990–2012
- KTM SX 150: 2009–2012
- KTM SX-F 250: 2005–2012
- KTM SX-F 350: 2011–2012
- KTM SX-F 450: 2003–2012
- KTM XC 125: 2008–2012
- KTM XC 150: 2010–2012
- KTM XC 250 / 300: 2006–2012
- KTM XC-F 250: 2007–2012
- KTM XC-F 350: 2012
- KTM XC-F 450: 2008–2012
- KTM XC-W 150: 2020–2023
- KTM XC-W 250 / 300: 2006–2023
Rebuilding the cush drive? Replace the rubbers at the same time with our Cush Drive Rubbers.
Not sure it fits? Call (801) 699-7979, Monday to Friday 8:30 to 4:30 Mountain.
