KTM 22mm Rear Cush Drive Hub Wheel Bearing Kit (115R)
Pickup available at Warp 9
Product Description

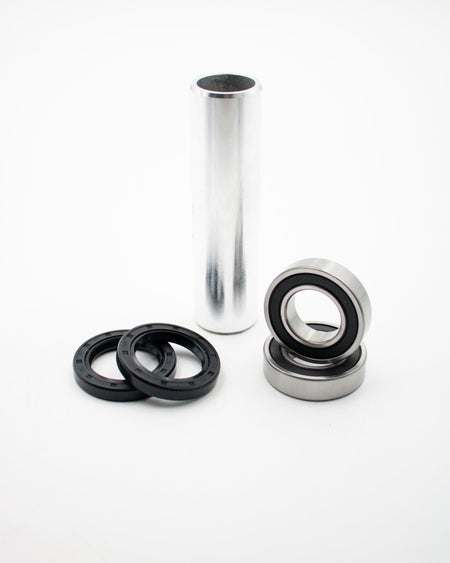

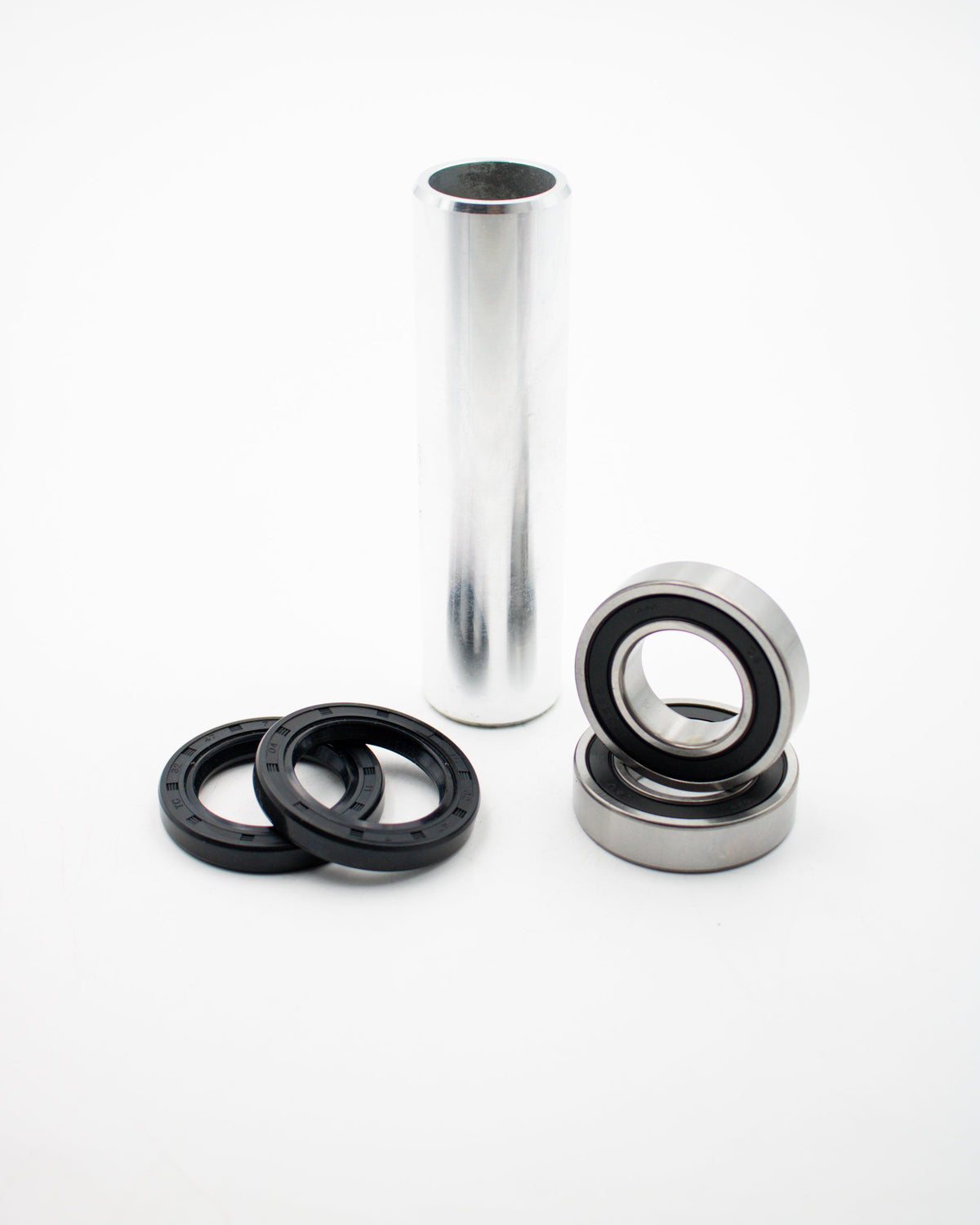

A rear wheel bearing kit for the Warp 9 115R cush drive hub on 22mm-axle KTM models, with what you need to rebuild one rear wheel: the hub bearings, seal, C-clip, distance tube and wheel spacers, plus the bearings and inside spacer for the cush drive sprocket carrier.
- Axle: 22mm
- Hub bearings: 2 x 6205DU (52 x 25mm)
- Hub seal: 1 x 32-52-7, plus C-clip
- Distance tube: included
- Carrier bearings: 2 x 6005 (47 x 25mm)
- Spacers: #98 rotor side, #99 sprocket side, #100 inside hub
- Kit numbers: 115R (hub) and 115R-C22 (carrier)
Warp 9 wheels only: this kit fits Warp 9 115R cush drive hubs with a 22mm axle, not OEM hubs. 20mm and 25mm axle bikes have their own kits.
Fits:
- KTM SX 125 / 150 / 250: 2023–current
- KTM SX-F 250 / 350 / 450: 2023–current
- KTM SX-F 250 Factory Edition: 2022
- KTM SX-F 450 Factory Edition: 2022–current
- KTM XC 150 / 250 / 300: 2023–current
- KTM XC-F 250 / 350: 2023–current
- KTM XC-F 450: 2024–current
- KTM EXC 150 / 250 / 300 (incl. Six Days): 2024–current
- KTM EXC-F 350 / 450 (incl. Six Days): 2024–current
- KTM XC-W 150 / 250 / 300: 2024–current
Rebuilding the cush drive? Replace the rubbers at the same time with our Cush Drive Rubbers.
Not sure it fits? Call (801) 699-7979, Monday to Friday 8:30 to 4:30 Mountain.
