Suzuki DR-Z400S / DR-Z400SM / Kawasaki KLX400 Rear Cush Drive Hub Wheel Bearing Kit (115R)
Pickup available at Warp 9
Product Description

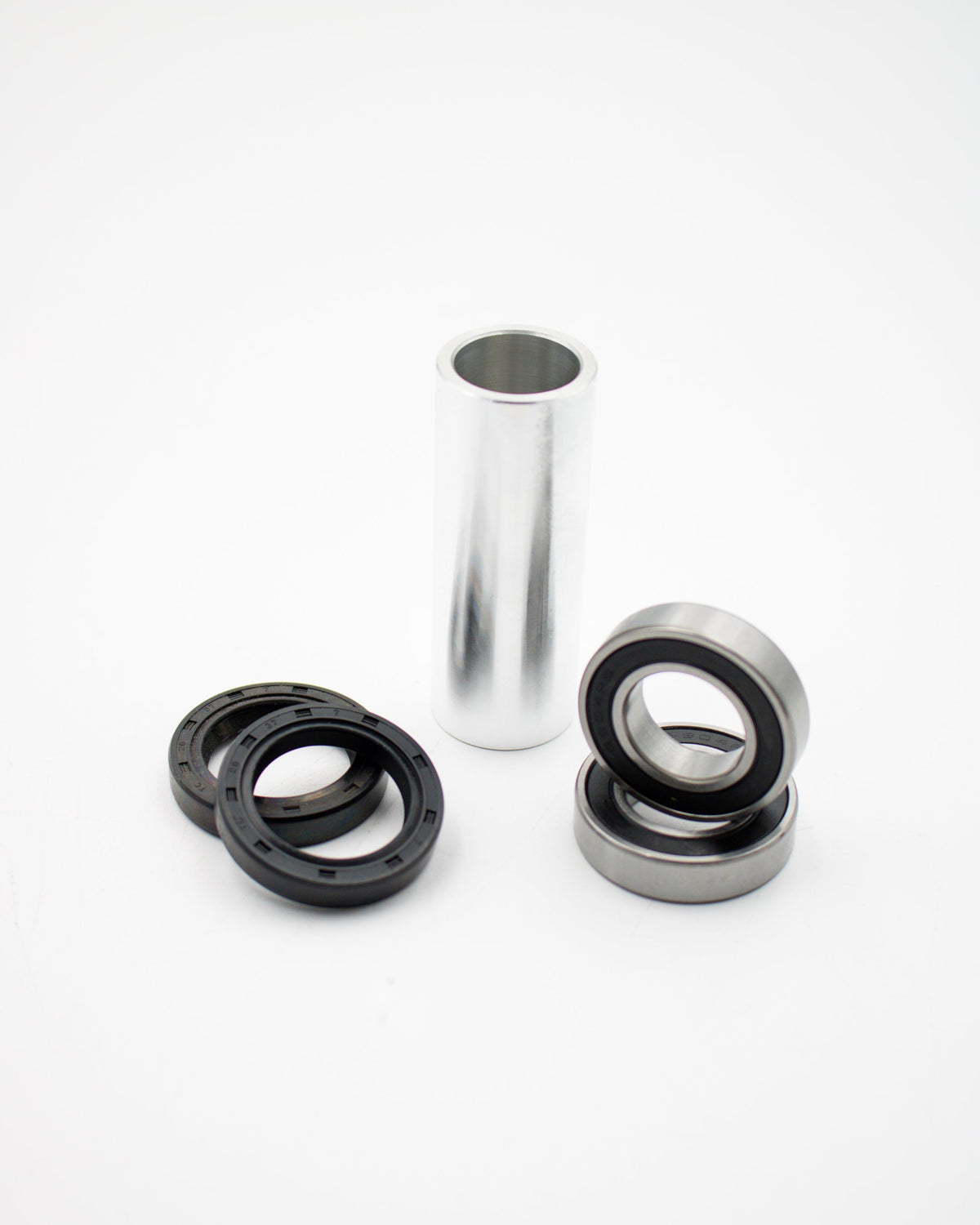

A rear wheel bearing kit for the Warp 9 115R cush drive hub on the Suzuki DR-Z400S, DR-Z400SM and Kawasaki KLX400, with what you need to rebuild one rear wheel: the hub bearings, seal, C-clip, distance tube and wheel spacers, plus the bearings and inside spacer for the cush drive sprocket carrier.
- Hub bearings: 2 x 6205DU (52 x 25mm)
- Hub seal: 1 x 32-52-7, plus C-clip
- Distance tube: included
- Carrier bearings: 2 x 6005 (47 x 25mm)
- Spacers: #42 rotor side, #43 sprocket side, #44 inside
- Kit numbers: 115R (hub) and 115R-C20 (carrier)
Warp 9 wheels only: this kit fits Warp 9 115R cush drive hubs, not OEM hubs.
Fits:
- Suzuki DR-Z400S / DR-Z400SM
- Kawasaki KLX400: 2000–2007

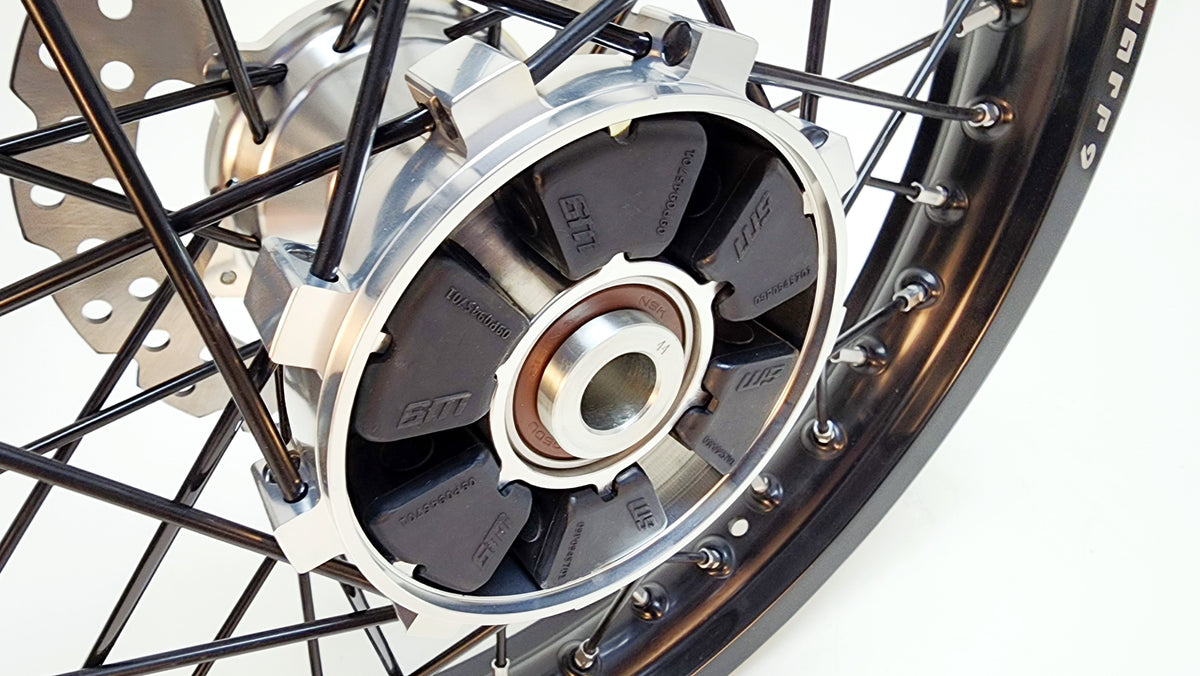

Rebuilding the cush drive? Replace the rubbers at the same time with our Cush Drive Rubbers.
Not sure it fits? Call (801) 699-7979, Monday to Friday 8:30 to 4:30 Mountain.
